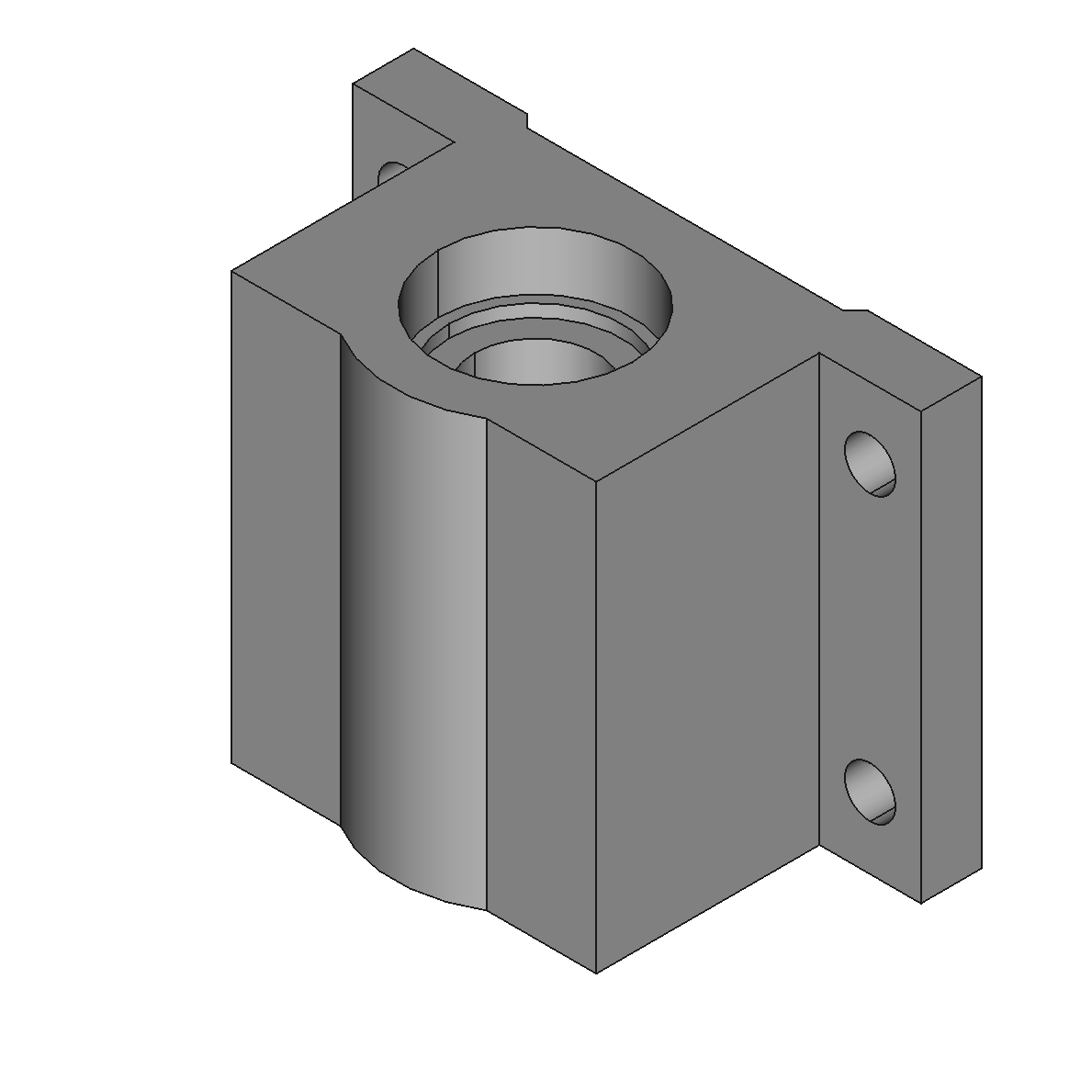

Mounted Linear Sleeve Bearings
Our maintenance-free bearings with chemical-resistant liners are designed for use with round end-supported shafts. These bearings have slippery liners that don't need added lubrication, making them virtually maintenance-free. Bearings with 0.0005" shaft clearance are ideal for precision applications, while those with 0.001" or 0.0015" clearance are less likely to bind. You can choose between self-aligning bearings that compensate for shaft misalignment, or fixed alignment bearings that are best for use where misalignment is unlikely. Our Frelon liners are stronger and more wear-resistant than PTFE liners.
| SKU | For Shaft Dia. | Overall Length | Shaft Clearance | Overall Width | Static Load Capacity | Temperature Range, °F | Mounting Hole Diameter | Dynamic Load Capacity | No. of Mounting Holes | Overall Height | For Shaft Material | Center Height | Type | Style |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Self Aligning with 2° Misalignment Capability | ||||||||||||||
| PTFE-Lined 6061 Aluminum Bearings with 6063 Aluminum Housing | ||||||||||||||
| UA2G_3V04 | 40mm | 90mm | 0.013mm | 102mm | 18,600 | -400° to 375° | 8.7mm | 1,000 lbs. @ 100 fpm | 4 | 78mm | Aluminum, Stainless Steel, Steel | 40mm | PTFE-Lined 6061 Aluminum Bearings with 6063 Aluminum Housing | Self Aligning with 2° Misalignment Capability |
| UA2G_3V03 | 25mm | 67mm | 0.013mm | 76mm | 4,800 | -400° to 375° | 7mm | 500 lbs. @ 100 fpm | 4 | 51.5mm | Aluminum, Stainless Steel, Steel | 26mm | PTFE-Lined 6061 Aluminum Bearings with 6063 Aluminum Housing | Self Aligning with 2° Misalignment Capability |
| UA2G_3V02 | 20mm | 53mm | 0.013mm | 54mm | 5,200 | -400° to 375° | 5.2mm | 300 lbs. @ 100 fpm | 4 | 41mm | Aluminum, Stainless Steel, Steel | 21mm | PTFE-Lined 6061 Aluminum Bearings with 6063 Aluminum Housing | Self Aligning with 2° Misalignment Capability |
| UA2G_3V01 | 16mm | 44mm | 0.013mm | 50mm | 3,300 | -400° to 375° | 4.3mm | 200 lbs. @ 100 fpm | 4 | 38.5mm | Aluminum, Stainless Steel, Steel | 19mm | PTFE-Lined 6061 Aluminum Bearings with 6063 Aluminum Housing | Self Aligning with 2° Misalignment Capability |
