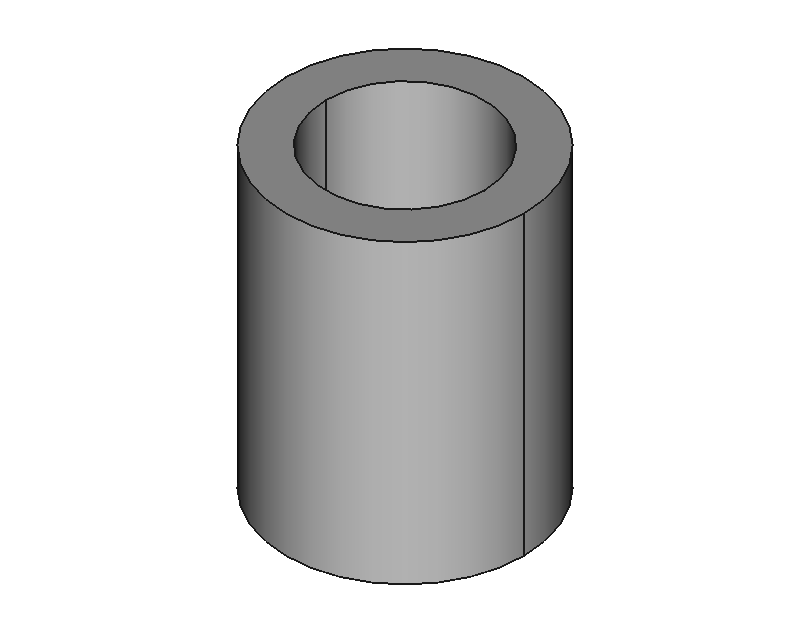

316 Stainless Steel Unthreaded Spacers
These spacers are designed with excellent corrosion resistance and are passivated for enhanced protection against corrosion. They may exhibit mild magnetic properties. These spacers are ideal for use in applications where corrosion resistance is of utmost importance.
| SKU | Length | For Screw Size | Internal Dia. (ID) | Type | Specifications Met | Price 10 up |
|---|---|---|---|---|---|---|
| 19 mm OD | ||||||
| ... | ||||||
| UA2M_3V10 | 10mm | M10 | 10.5mm | 19 mm OD | ASTM A582 | 5.0784 |
| UA2M_3V09 | 5mm | M10 | 10.5mm | 19 mm OD | ASTM A582 | 4.5172 |
| 13 mm OD | ||||||
| ... | ||||||
| UA2M_3V08 | 25mm | M6 | 6.4mm | 13 mm OD | ASTM A582 | 5.474 |
| UA2M_3V07 | 15mm | M6 | 6.4mm | 13 mm OD | ASTM A582 | 4.554 |
| 6 mm OD | ||||||
| ... | ||||||
| UA2M_3V06 | 20mm | M4 | 4.3mm | 6 mm OD | ASTM A582 | 4.2596 |
| UA2M_3V05 | 15mm | M3 | 3.2mm | 6 mm OD | ASTM A582 | 3.956 |
| 4.5 mm OD | ||||||
| ... | ||||||
| UA2M_3V04 | 10mm | M2.5 | 2.7mm | 4.5 mm OD | ASTM A582 | 3.8456 |
| UA2M_3V03 | 8mm | M2.5 | 2.7mm | 4.5 mm OD | ASTM A582 | 3.8272 |
| UA2M_3V02 | 6mm | M2.5 | 2.7mm | 4.5 mm OD | ASTM A582 | 3.7352 |
| UA2M_3V01 | 2mm | M2.5 | 2.7mm | 4.5 mm OD | ASTM A582 | 3.6156 |
