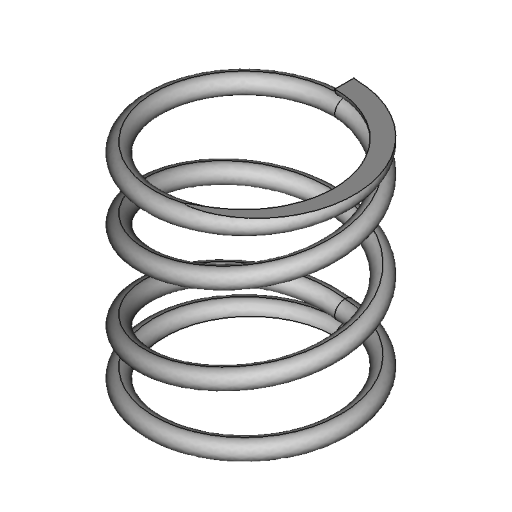

C.530.1030.1600.A
₹417.11
In stock
Details
- Product Name: C.530.1030.1600.A
- Wire Diam. (mm): 10.3
- Ext. Diam. (mm): 53
- Internal Diameter (mm): 32.4
- Nr of Coils: 12.1
- Free Len. (mm): 160
- Pitch (mm): 13.8
- Shaft (mm): 31.428
- Length @max load (mm): 142.864823
- Spring Rate (daN/mm): 14.561836
- Block Length(mm): 129.78
- Hole (mm): 54.59
- Buckling at length (mm): 0
- Weight (g): 1066.365416
- Endurance: 10000000
- Grinding: Yes
- Material: Music Wire
| Product Name | C.530.1030.1600.A |
|---|---|
| Wire Diam. (mm) | 10.3 |
| Ext. Diam. (mm) | 53 |
| Internal Diameter (mm) | 32.4 |
| Nr of Coils | 12.1 |
| Free Len. (mm) | 160 |
| Pitch (mm) | 13.8 |
| Shaft (mm) | 31.428 |
| Length @max load (mm) | 142.864823 |
| Spring Rate (daN/mm) | 14.561836 |
| Block Length(mm) | 129.78 |
| Hole (mm) | 54.59 |
| Buckling at length (mm) | 0 |
| Weight (g) | 1066.365416 |
| Endurance | 10000000 |
| Grinding | Yes |
| Material | Music Wire |
