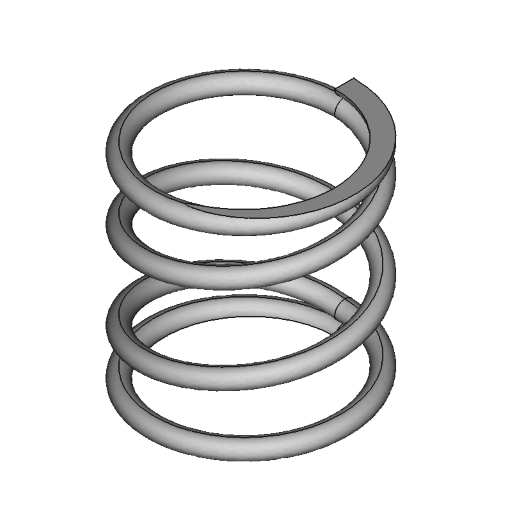

C.120.150.0550.N
43.947,34 ₫
Tạm hết hàng
Details
- Product Name: C.120.150.0550.N
- Wire Diam. (mm): 1.5
- Ext. Diam. (mm): 12
- Internal Diameter (mm): 9
- Nr of Coils: 14.5
- Free Len. (mm): 55
- Pitch (mm): 4.15
- Shaft (mm): 8.775
- Length @max load (mm): 25.75
- Spring Rate (daN/mm): 0.3564
- Block Length(mm): 22.5
- Hole (mm): 12.3
- Buckling at length (mm): 0
- Weight (g): 6.680433
- Endurance: 10000000
- Grinding: Yes
- Material: Zinc coated Steel
| Product Name | C.120.150.0550.N |
|---|---|
| Wire Diam. (mm) | 1.5 |
| Ext. Diam. (mm) | 12 |
| Internal Diameter (mm) | 9 |
| Nr of Coils | 14.5 |
| Free Len. (mm) | 55 |
| Pitch (mm) | 4.15 |
| Shaft (mm) | 8.775 |
| Length @max load (mm) | 25.75 |
| Spring Rate (daN/mm) | 0.3564 |
| Block Length(mm) | 22.5 |
| Hole (mm) | 12.3 |
| Buckling at length (mm) | 0 |
| Weight (g) | 6.680433 |
| Endurance | 10000000 |
| Grinding | Yes |
| Material | Zinc coated Steel |
