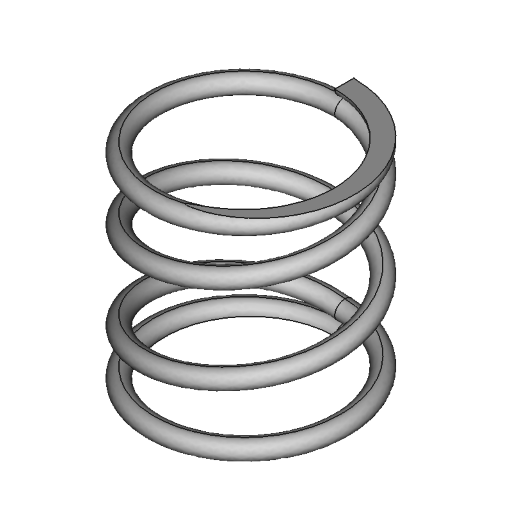

C.260.210.0508.A
29.298,23 ₫
Tạm hết hàng
Details
- Product Name: C.260.210.0508.A
- Wire Diam. (mm): 2.1
- Ext. Diam. (mm): 26
- Internal Diameter (mm): 21.8
- Nr of Coils: 6.9
- Free Len. (mm): 50.8
- Pitch (mm): 9.51
- Shaft (mm): 21.146
- Length @max load (mm): 18.56
- Spring Rate (daN/mm): 0.29618
- Block Length(mm): 15.54
- Hole (mm): 26.78
- Buckling at length (mm): 0
- Weight (g): 14.166159
- Endurance: 10000000
- Grinding: Yes
- Material: Music Wire
| Product Name | C.260.210.0508.A |
|---|---|
| Wire Diam. (mm) | 2.1 |
| Ext. Diam. (mm) | 26 |
| Internal Diameter (mm) | 21.8 |
| Nr of Coils | 6.9 |
| Free Len. (mm) | 50.8 |
| Pitch (mm) | 9.51 |
| Shaft (mm) | 21.146 |
| Length @max load (mm) | 18.56 |
| Spring Rate (daN/mm) | 0.29618 |
| Block Length(mm) | 15.54 |
| Hole (mm) | 26.78 |
| Buckling at length (mm) | 0 |
| Weight (g) | 14.166159 |
| Endurance | 10000000 |
| Grinding | Yes |
| Material | Music Wire |
