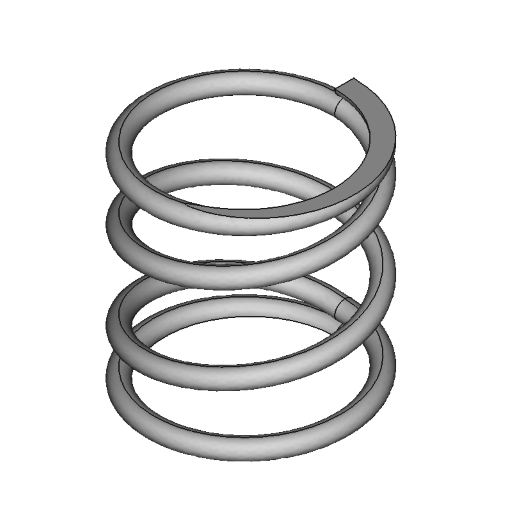

C.330.250.1850.A
51.271,90 ₫
Tạm hết hàng
Details
- Product Name: C.330.250.1850.A
- Wire Diam. (mm): 2.5
- Ext. Diam. (mm): 33
- Internal Diameter (mm): 28
- Nr of Coils: 14.6
- Free Len. (mm): 185
- Pitch (mm): 14.28
- Shaft (mm): 27.16
- Length @max load (mm): 47.93
- Spring Rate (daN/mm): 0.111316
- Block Length(mm): 37.75
- Hole (mm): 33.99
- Buckling at length (mm): 116.84
- Weight (g): 54.420833
- Endurance: 10000000
- Grinding: Yes
- Material: Music Wire
| Product Name | C.330.250.1850.A |
|---|---|
| Wire Diam. (mm) | 2.5 |
| Ext. Diam. (mm) | 33 |
| Internal Diameter (mm) | 28 |
| Nr of Coils | 14.6 |
| Free Len. (mm) | 185 |
| Pitch (mm) | 14.28 |
| Shaft (mm) | 27.16 |
| Length @max load (mm) | 47.93 |
| Spring Rate (daN/mm) | 0.111316 |
| Block Length(mm) | 37.75 |
| Hole (mm) | 33.99 |
| Buckling at length (mm) | 116.84 |
| Weight (g) | 54.420833 |
| Endurance | 10000000 |
| Grinding | Yes |
| Material | Music Wire |
